LS-1246G Automatic Case Maker & Set Up Box Making Machine Paper Board Making Machine

  • 1
  • 2
  • 3

Brand Name : Longxingsheng

Model Number : LS-1246G

Certification : CE/ISO-9001

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 30 Sets per month

Delivery Time : 7-30 workdays

Packaging Details : with film, paper and wooden crates

Product name : Automatic book type box making machine

Samples : Not available

Customization : Graphic customization(Min. Order: 1 Sets)

Shipping : Support Sea freight

Service : 1 Year for Core Components

Paper size(max) : L800*W600mm

Contact Now

LS-1246G Multi-function fully automatic rigid box making machine
Machine model
LS-1246G
Paper size(max)
L800*W600mm
paper size (min)
L150*W100mm
Box Length
100-600mm
Box Width
60-400mm
Box Height
15-140mm
Paper thickness
80-350g/㎡
Cardboard thickness
0.8-3mm
Working speed
15-25pcs/min
Edge folding size
10-100mm
Turn in depth
15-100mm
Motor power
12.5kw/380v 3 phase
Heating power
8 kw
Air pressure
40L/min 0.8Mpa
Weight of machine
3800kg
Machine dimension
L6500*W3600*H3200mm
Product Parameters
LS-1246G Automatic Case Maker & Set Up Box Making Machine Paper Board Making Machine

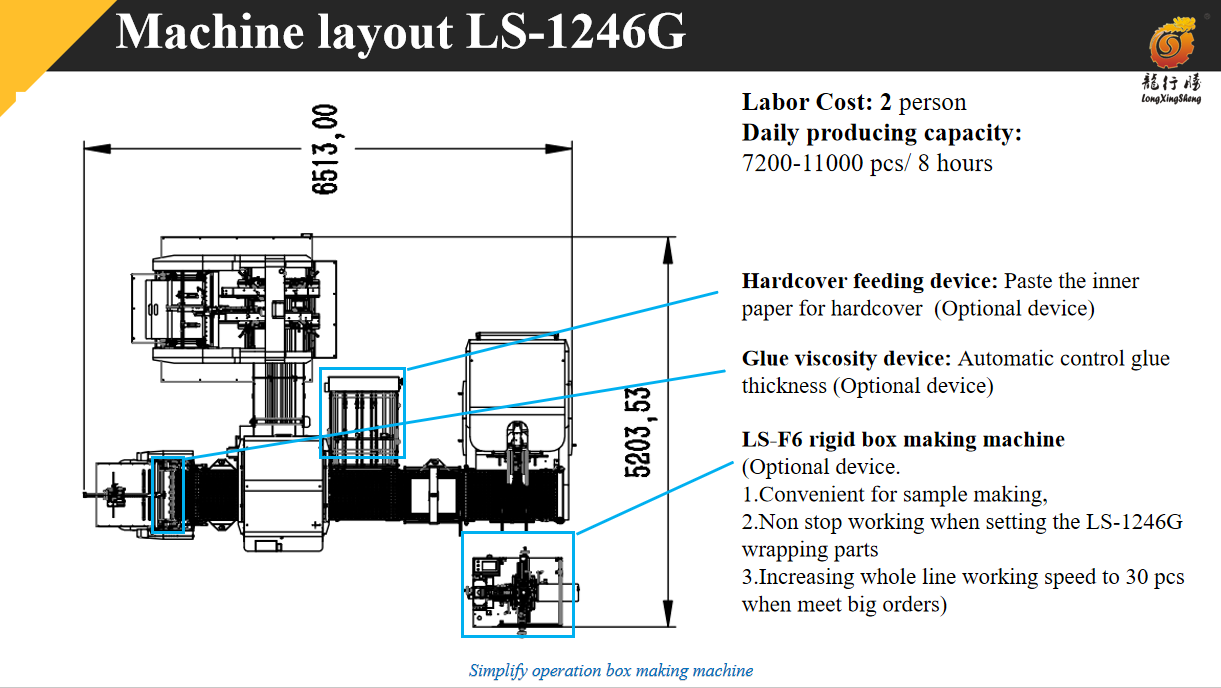

Optional function
LS-1246G Automatic Case Maker & Set Up Box Making Machine Paper Board Making Machine
LS-1246G Automatic Case Maker & Set Up Box Making Machine Paper Board Making Machine

Hardcover feeding device (Optional device)

It applied in hardcover making, inner paper of hardcover pasting.
LS-1246G Automatic Case Maker & Set Up Box Making Machine Paper Board Making Machine

Glue viscosity device (Optional device)

Detecting hot melt glue thickness, adding water to glue tank automatically.
LS-1246G Automatic Case Maker & Set Up Box Making Machine Paper Board Making Machine

LS-F6 Rigid box making machine (Optional device)

Normal size, small size able to be modified in this machine
LS-1246G Automatic Case Maker & Set Up Box Making Machine Paper Board Making Machine
Forming part can be sold separately
For customer not have enough budget, this forming part able to add separately.
Products Description
LS-1246G Automatic Case Maker & Set Up Box Making Machine Paper Board Making Machine

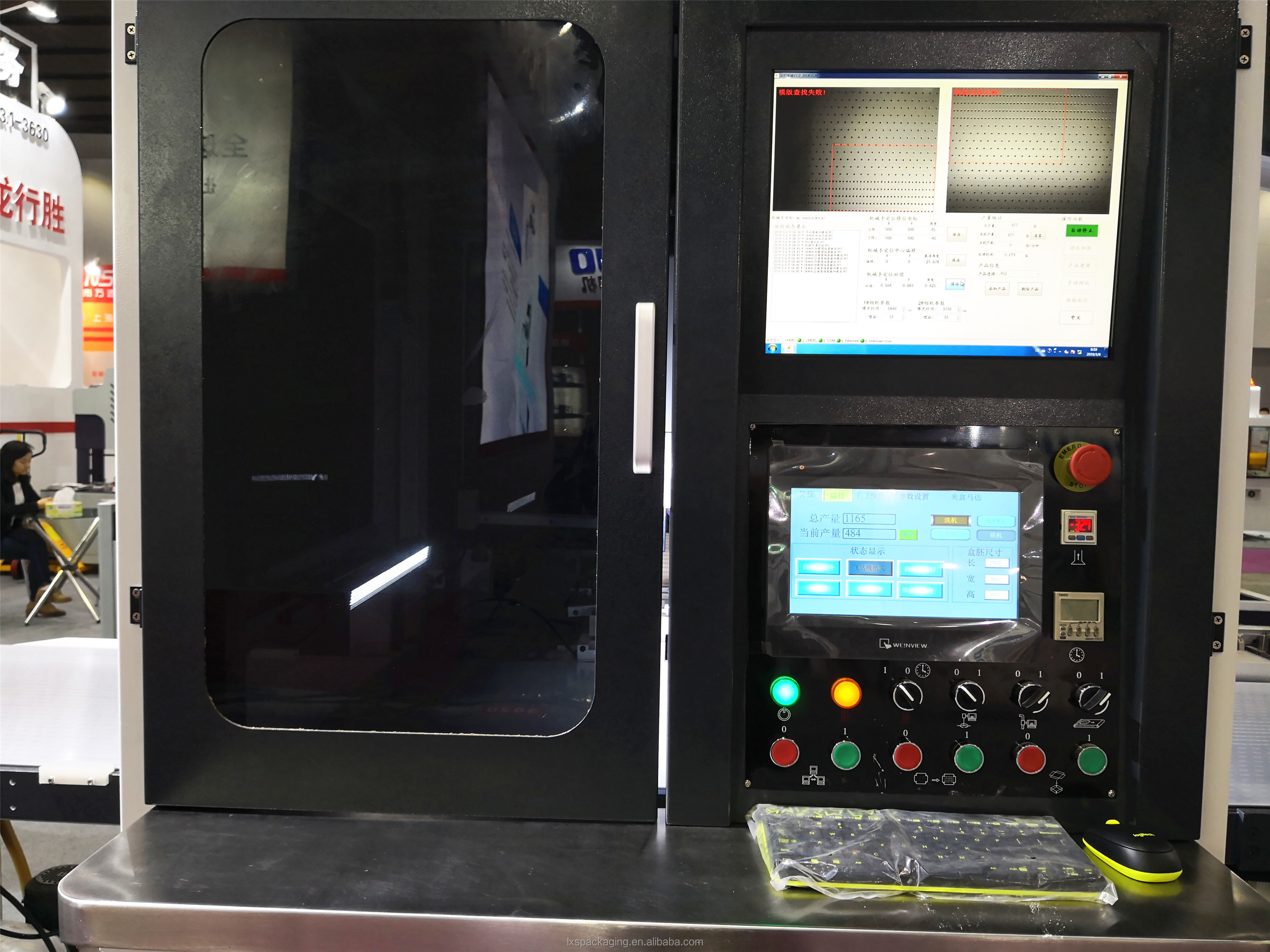

Control table

Including touch screem, Monitor, button for control movment.
LS-1246G Automatic Case Maker & Set Up Box Making Machine Paper Board Making Machine

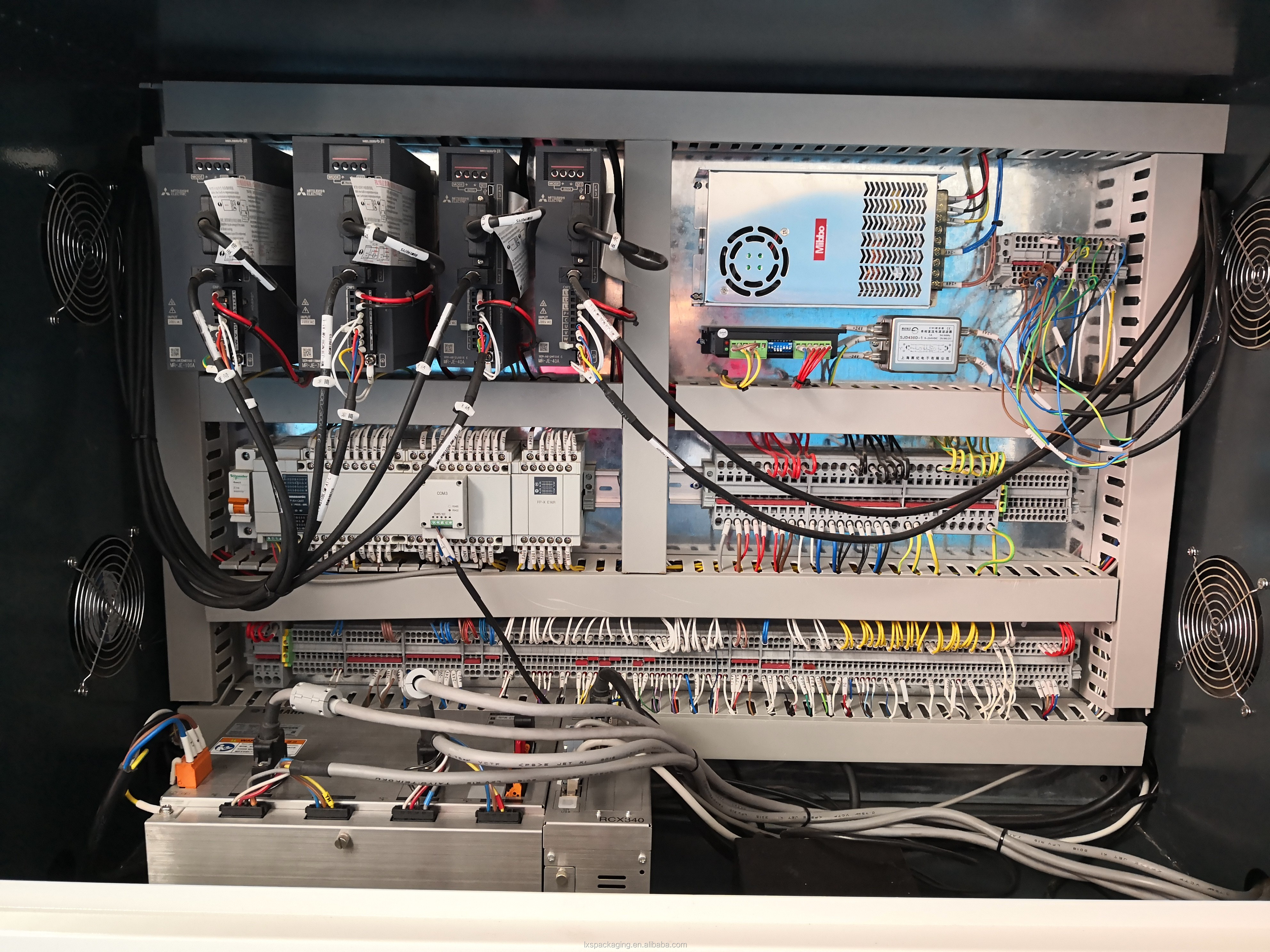

Electric box

Including controller of robotic arm, servo motor driver, PLC etc.
LS-1246G Automatic Case Maker & Set Up Box Making Machine Paper Board Making Machine

Paper feeding device

Cam structure paper feeding device which is drived by servo motor.
LS-1246G Automatic Case Maker & Set Up Box Making Machine Paper Board Making Machine

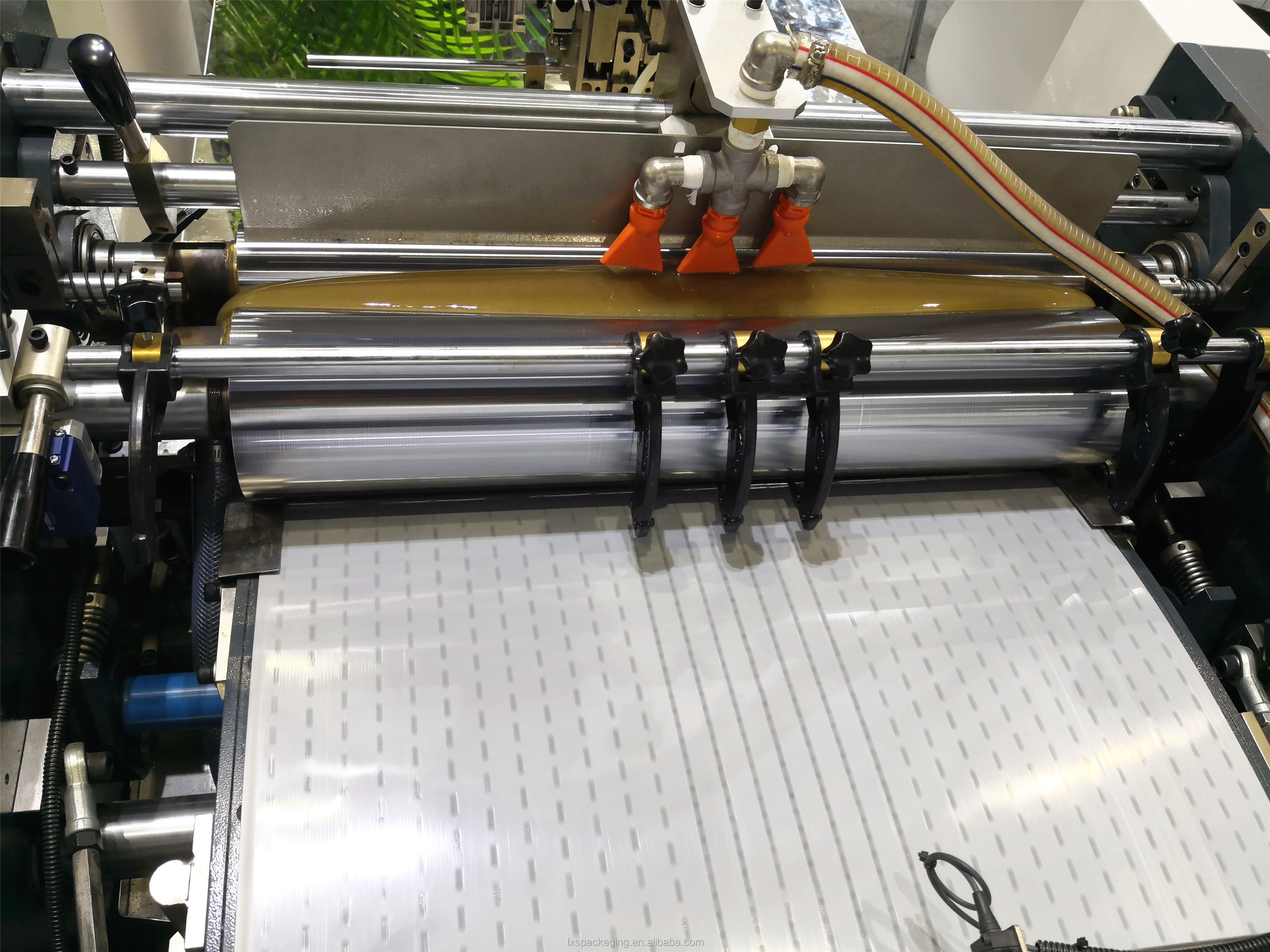

Gluing system

Upgrade gluing system, higher using rate of glue
LS-1246G Automatic Case Maker & Set Up Box Making Machine Paper Board Making Machine

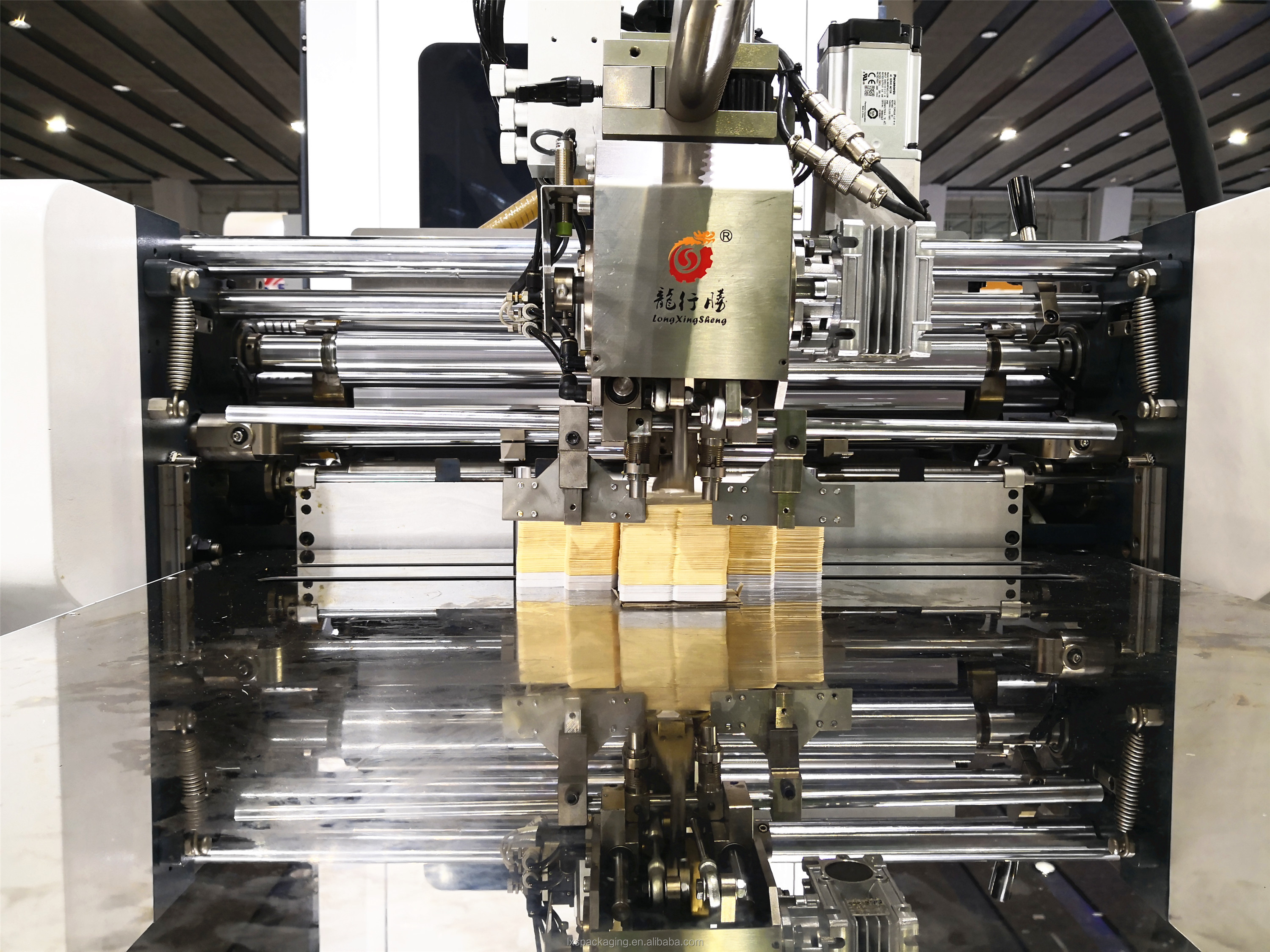

Corner pasting and feeding

Automatic corner pasting and box feeding
LS-1246G Automatic Case Maker & Set Up Box Making Machine Paper Board Making Machine

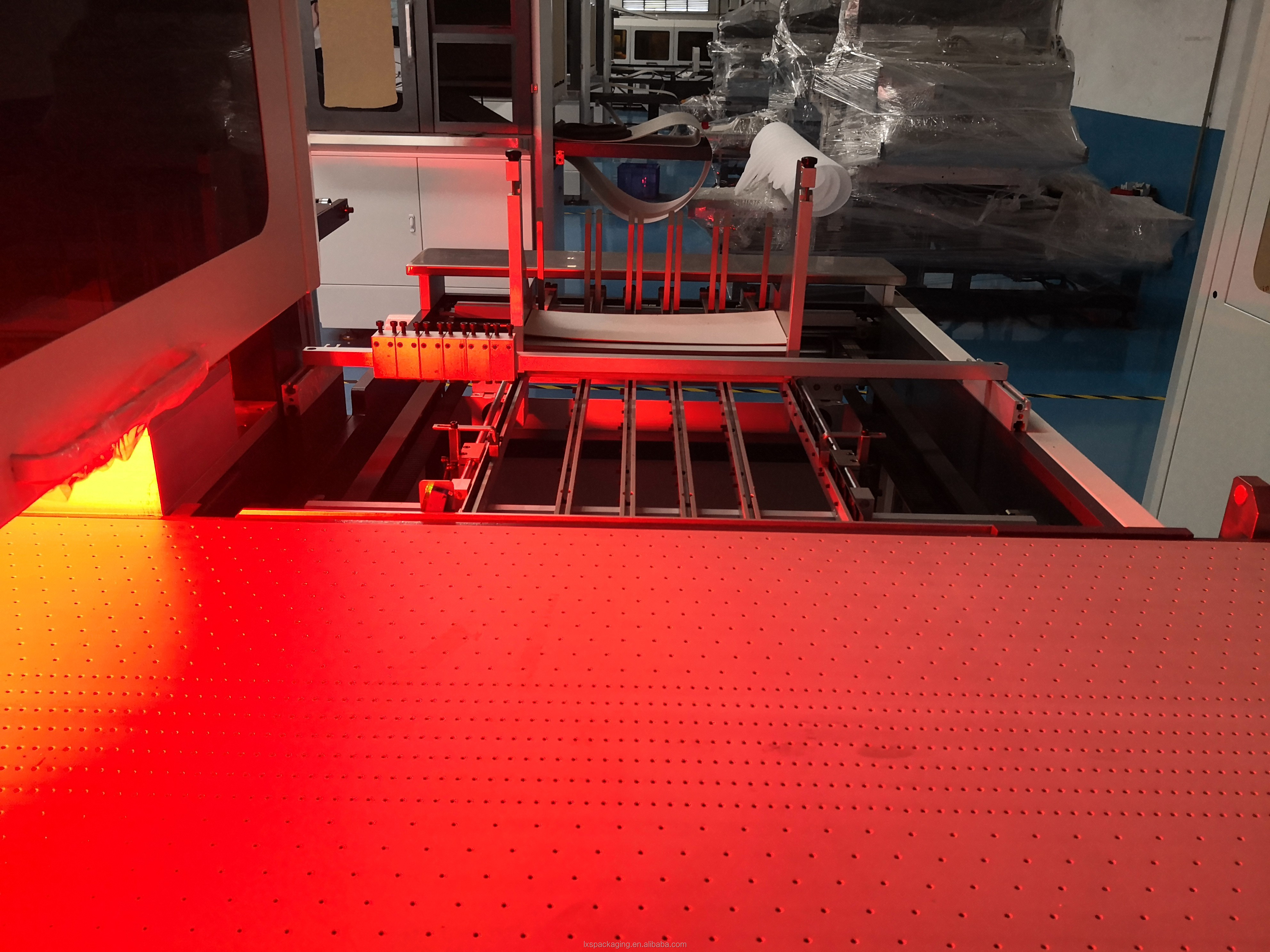

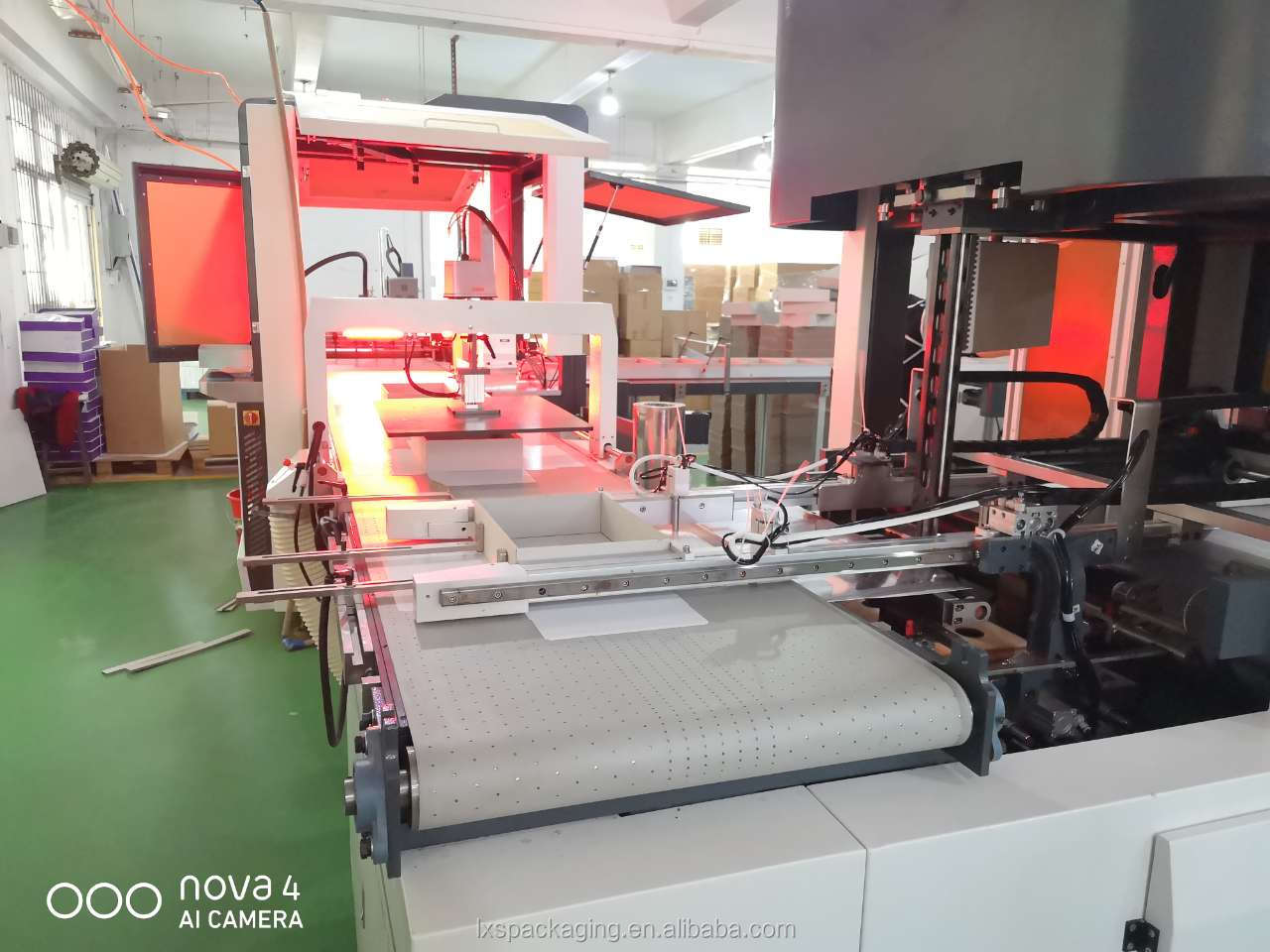

Positioning system

Including robotic arm, light source, double camera.
LS-1246G Automatic Case Maker & Set Up Box Making Machine Paper Board Making Machine

Second box pressing

Pressing box tightly on the glued paper.
LS-1246G Automatic Case Maker & Set Up Box Making Machine Paper Board Making Machine

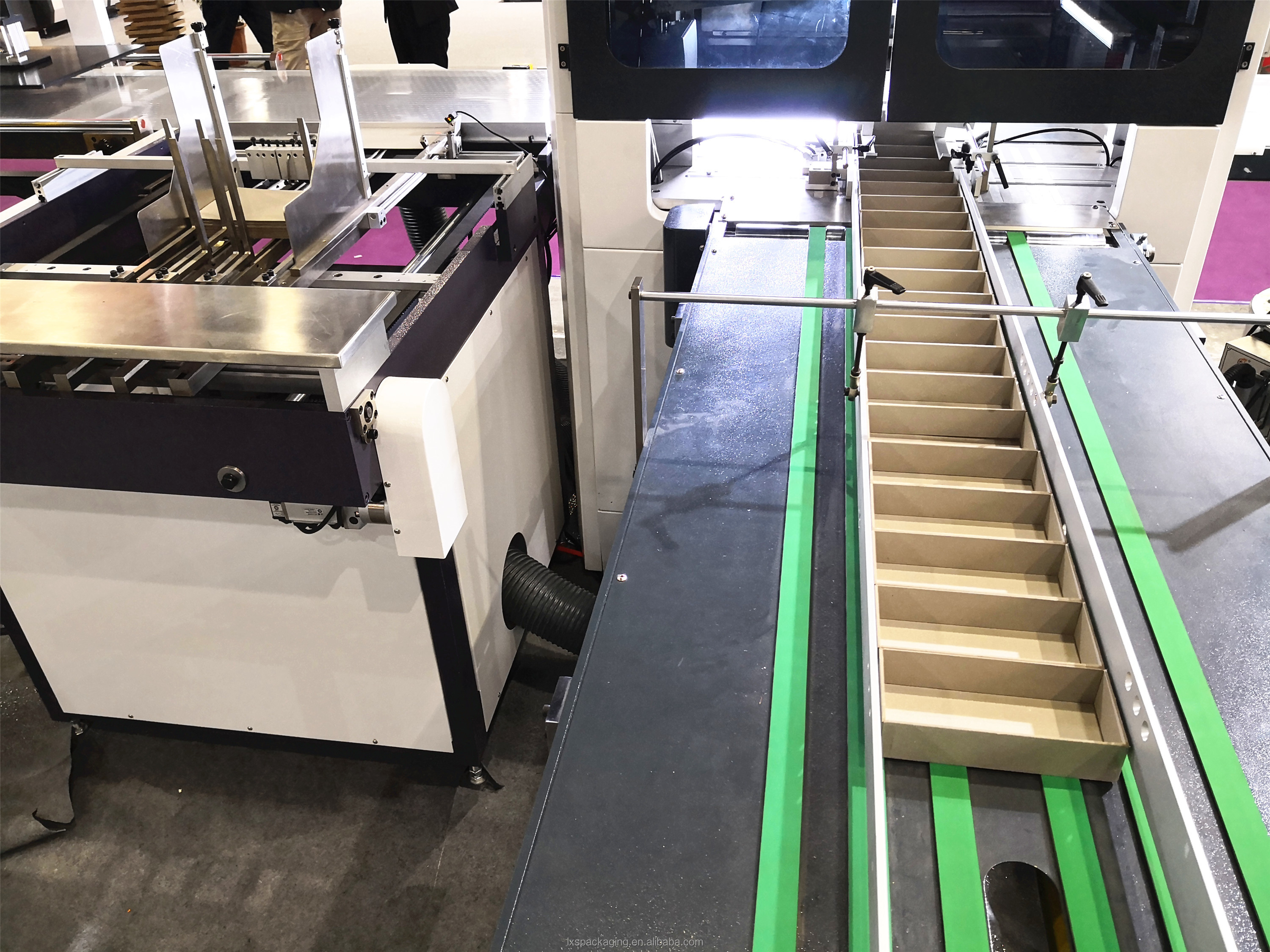

Box feeding

Easy operational box feeding system
LS-1246G Automatic Case Maker & Set Up Box Making Machine Paper Board Making Machine

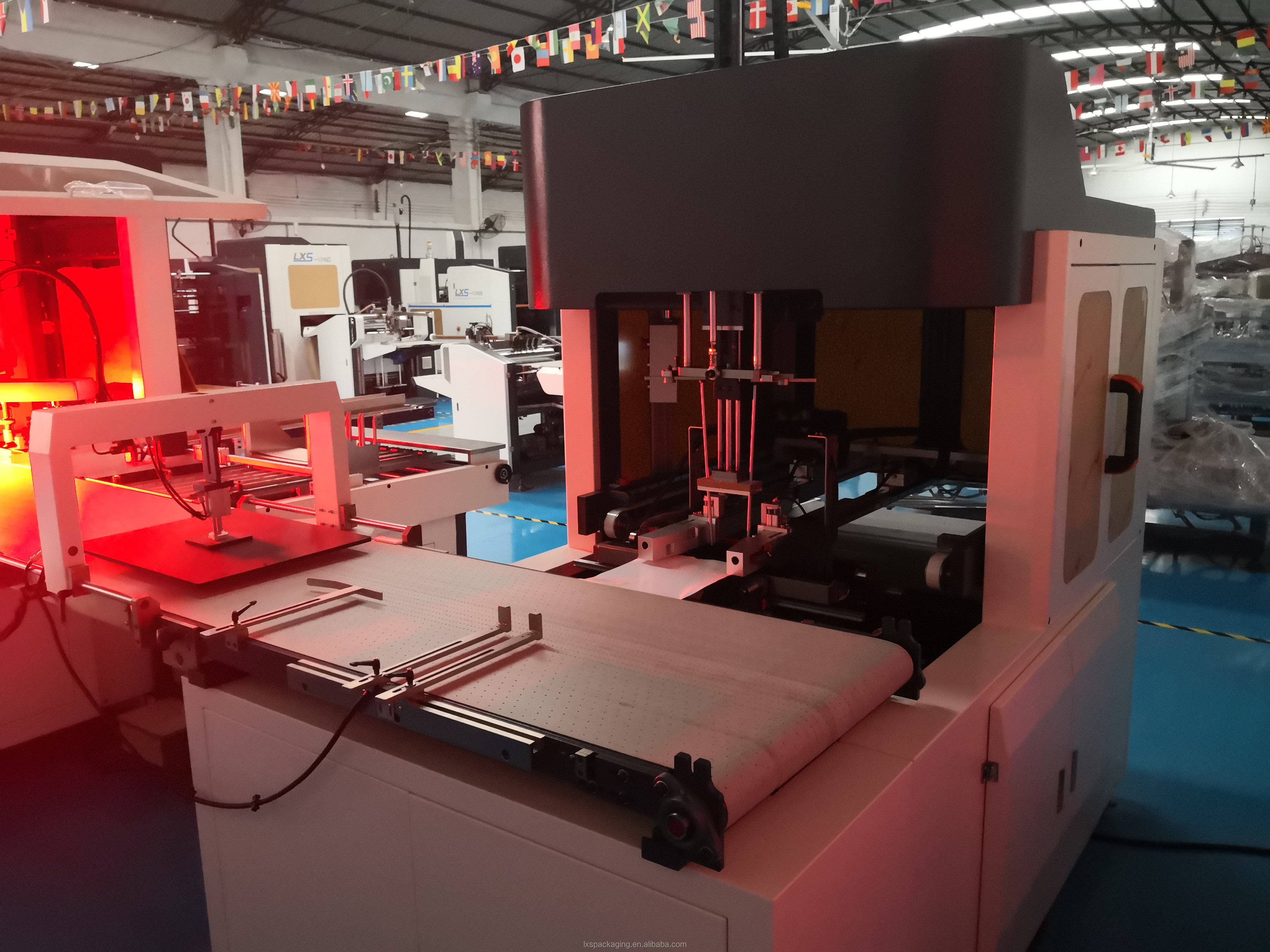

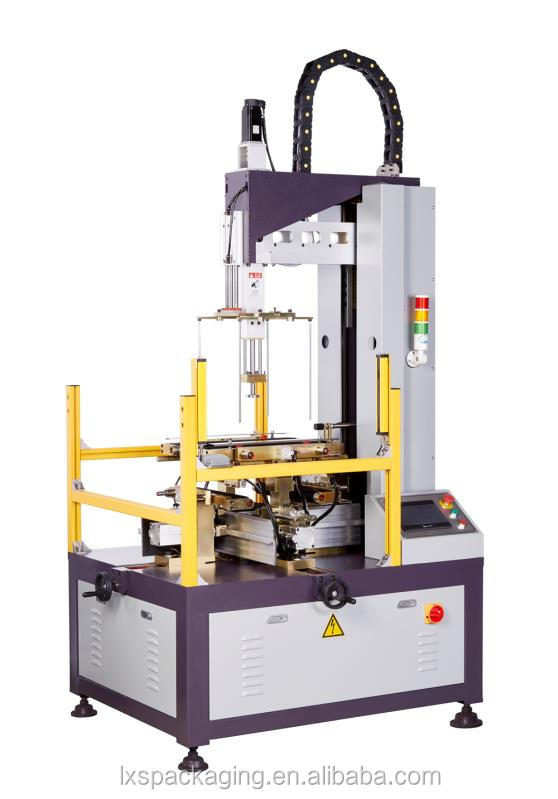

Forming part

Forming machine with simple structure. Able to do normal rigid box, slant side box (Mold customization), long edge folding box, wrapping into bottom.
Machine parts
LS-1246G Automatic Case Maker & Set Up Box Making Machine Paper Board Making Machine
Finished products by LS-1246G
LS-1246G Automatic Case Maker & Set Up Box Making Machine Paper Board Making Machine
LS-1246G Automatic Case Maker & Set Up Box Making Machine Paper Board Making Machine
LS-1246G Automatic Case Maker & Set Up Box Making Machine Paper Board Making Machine
LS-1246G Automatic Case Maker & Set Up Box Making Machine Paper Board Making Machine

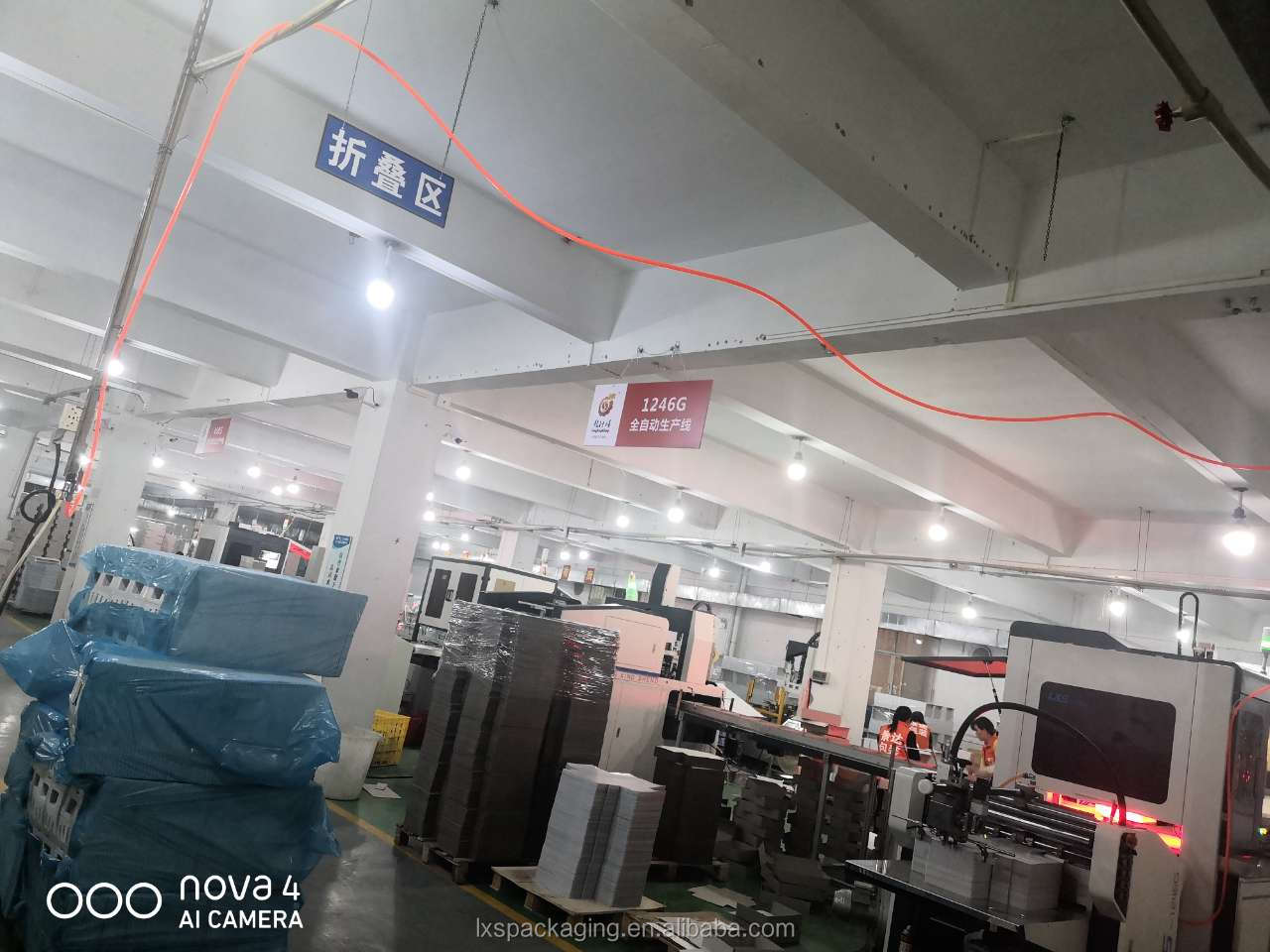

Machine installation
LS-1246G Automatic Case Maker & Set Up Box Making Machine Paper Board Making Machine
LS-1246G Automatic Case Maker & Set Up Box Making Machine Paper Board Making Machine
Company Profile

Dongguan Longxingjian Intelligent Equipment Co.,Ltd

We are located in world manufacturer city----Dongguan City, Guangdong Province. The former compay name is Dongguan Longxingsheng Machinery Co.,Ltd. We have independent R&D department. Up to now, We have got more than 20 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery`s research, development, manufacturing and selling for more than 13 years. Grooving machine series and rigid box forming series are our main products.
We hold "professional, focus, customer first" as our operating principle, insist on surviving from good quality, improving efficiency from prescise management, developing from creativity. We are committed to spare no effort to become the national brand and contribute our strength in Printing&Packaging industry.
